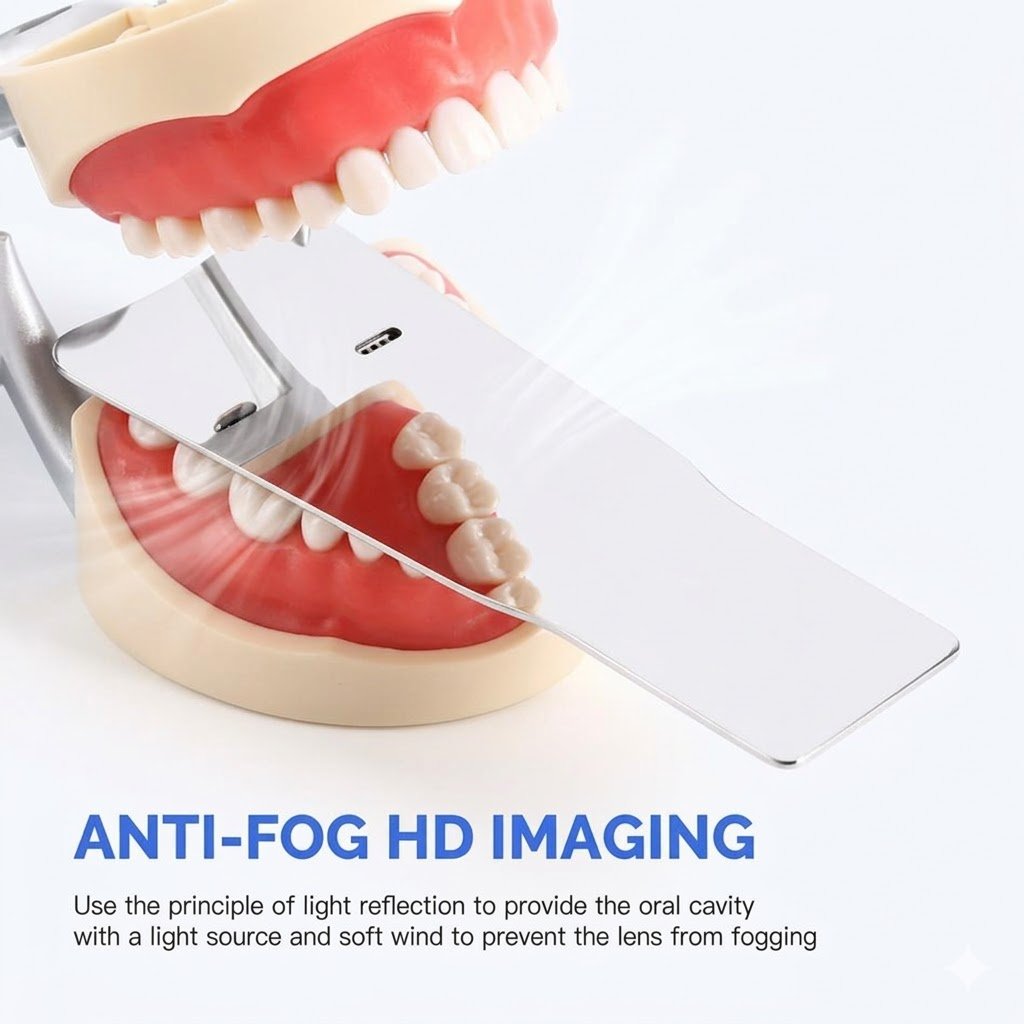

• Automatic Defogging: A built-in micro-fan generates a gentle breeze to eliminate mirror fogging caused by human breath within 5 seconds.

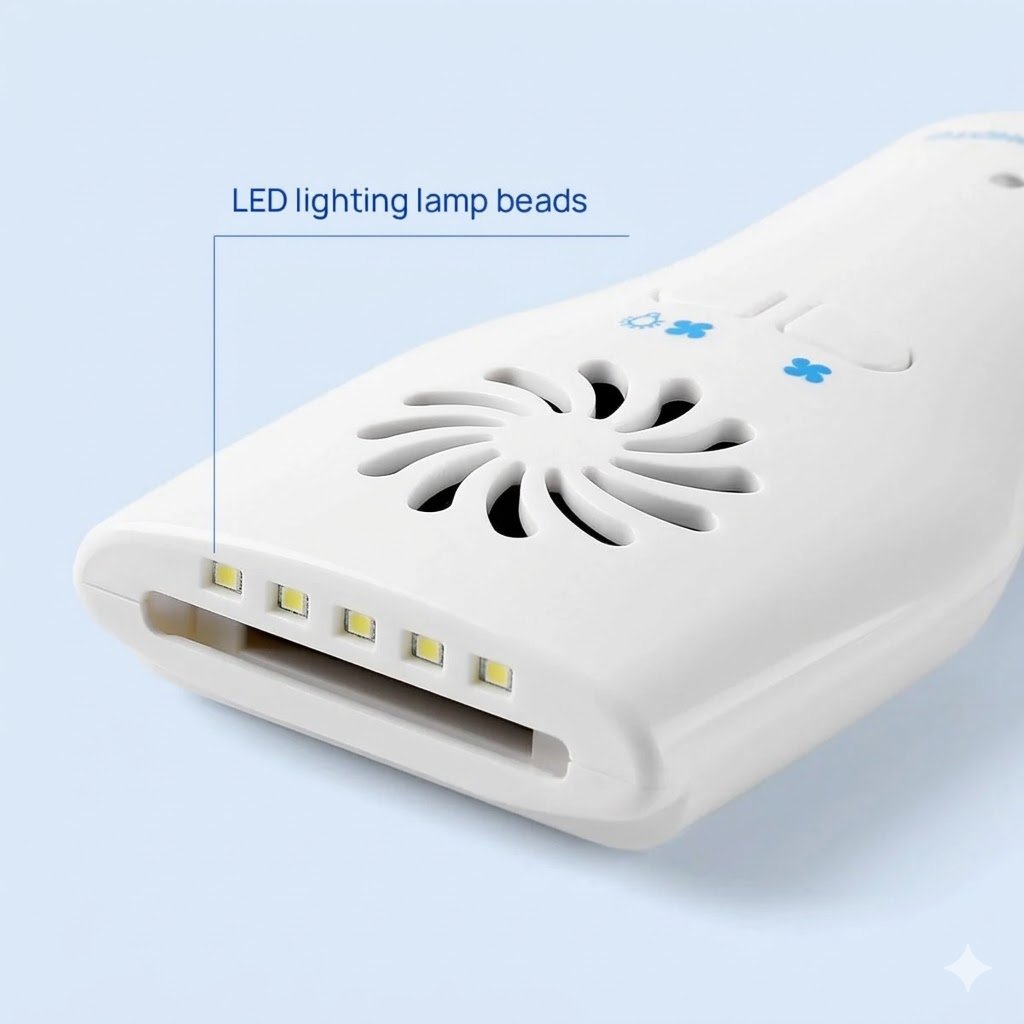

• LED Illumination: Equipped with high-quality, shadowless LED lights to increase oral cavity brightness for clearer photos.

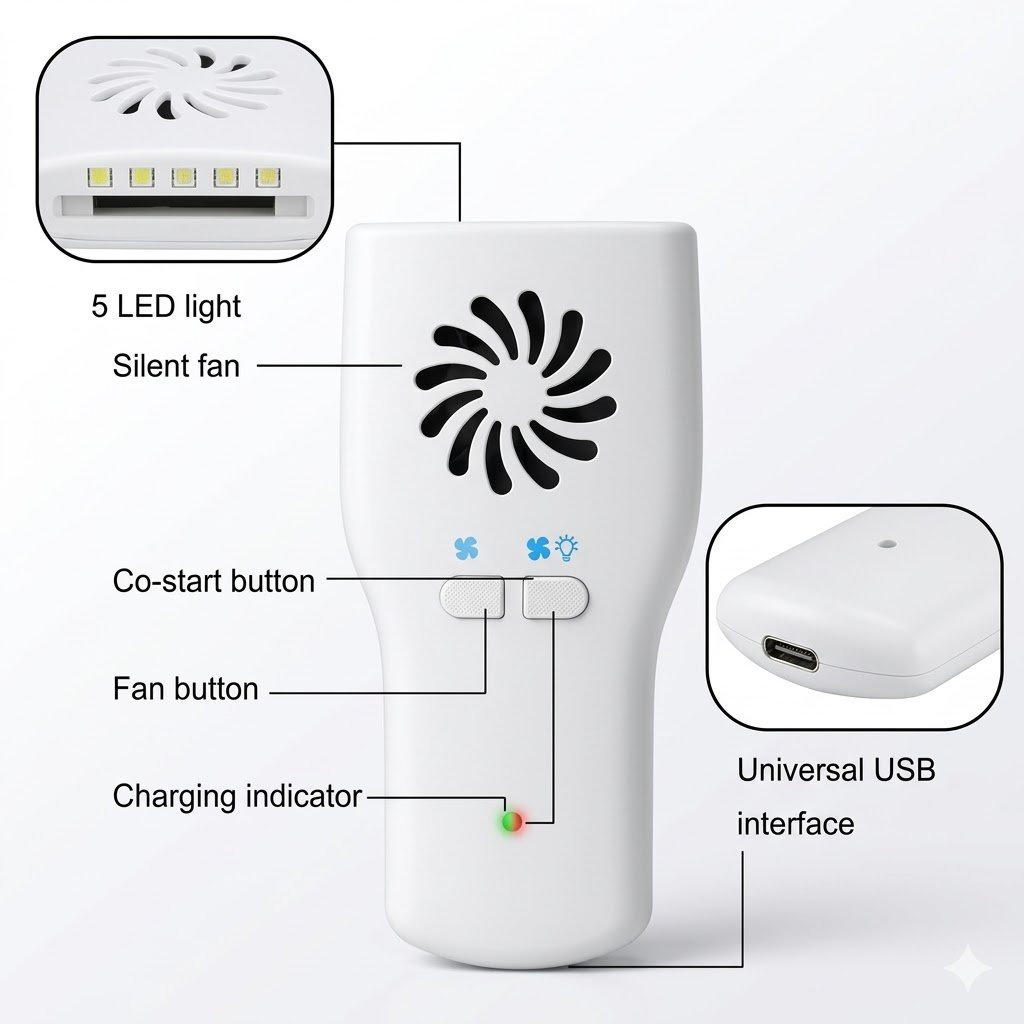

• Intelligent Dual Control: Features independent switches for the fan and the LED lights to suit different lighting needs.

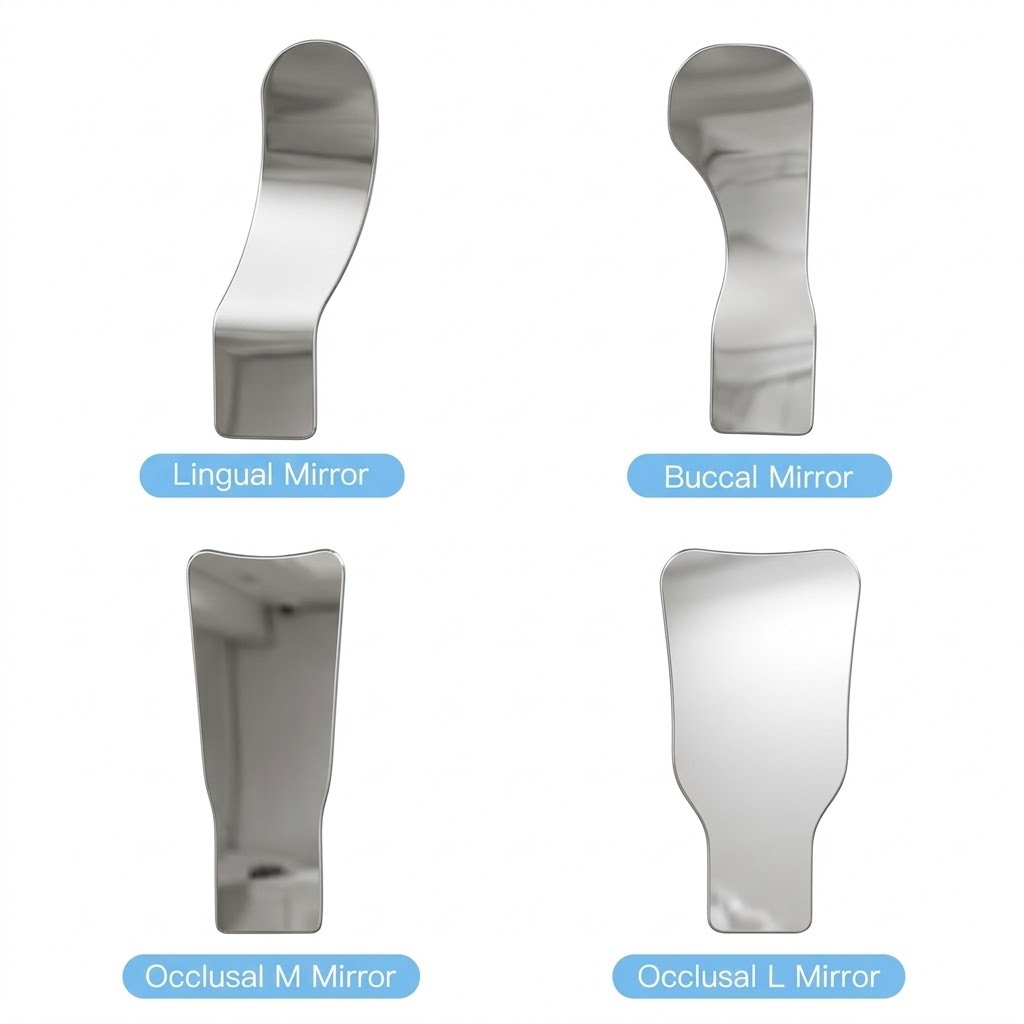

• Interchangeable Reflectors: Comes with 4 different mirror shapes to cover all angles (Occlusal, Buccal, and Lingual).

• Safety Protection: Built-in current-limiting chip for automatic input regulation and overcharge protection.

• Autoclaveable Mirrors: The stainless steel reflectors can be sterilized in an autoclave (up to 134°C) to prevent cross-infection.

This is an intelligent intraoral photography system designed to solve the common problem of mirror fogging during dental exams and photography. It combines a high-speed micro-fan with integrated LED lighting to provide a clear, shadowless, and high-definition view of the oral cavity. It is an essential tool for orthodontics, oral surgery, and patient communication.

• Main Unit Material: High-grade ABS medical plastic with a smooth, ergonomic grip.

• Mirror Material: 304 Medical-grade high-polish stainless steel (12K mirror finish).

• Battery: 1000mAh / 3.7V rechargeable Lithium battery.

• Input Voltage: 5.0V / 1A.

• Output Power: 1.3W Max.

• Mirror Reflectivity: ~95%.

• Device Dimensions: Approx. 12 x 6.6 x 2 cm.

• 1 x Handle/Main Unit (Control Base)

• 4 x Stainless Steel Reflectors (M/L Occlusal, Buccal, and Lingual)

• 1 x USB Charging Cable

• 1 x Microfiber Cleaning Cloth

• 1 x User Manual

• Preparation: Insert the desired stainless steel mirror into the front slot of the handle unit.

• Activation: Press the switch buttons on the handle. Usually, one button controls the fan (for defogging) and the other controls the LED light.

• Positioning: Place the mirror in the patient's mouth at the required angle.

• Photography: Use a smartphone or DSLR to capture the image. The fan will keep the surface clear while you shoot.

• Auto Shut-off: The device typically shuts down automatically after 3 minutes of inactivity to save power.
