True Ultrasonic Power: Operates at 40,000 Hz, which is 200 times more powerful than sonic devices. This frequency is essential for creating acoustic streaming and cavitation.

Cordless & Ergonomic: Lightweight, battery-operated handpiece with a contra-angle design for easy access to posterior regions

Enhanced Visibility: Integrated high-intensity LED light provides clear visualization of the access cavity

Titanium Activator Tips: Highly durable, flexible, and non-cutting tips that resonate down their entire length without removing tooth structure.

Acoustic Streaming & Cavitation: Effectively removes vapor lock, penetrates dentinal tubules, and disrupts biofilm.

The EndoUltra is a compact, handheld device used to electro-mechanically activate intracanal solutions (such as $NaOCl$ or $EDTA$). Its patented technology allows it to reach the 40 kHz frequency needed to create the physical phenomena—cavitation and acoustic streaming—that ensure a truly clean root canal, leading to better long-term treatment outcomes.

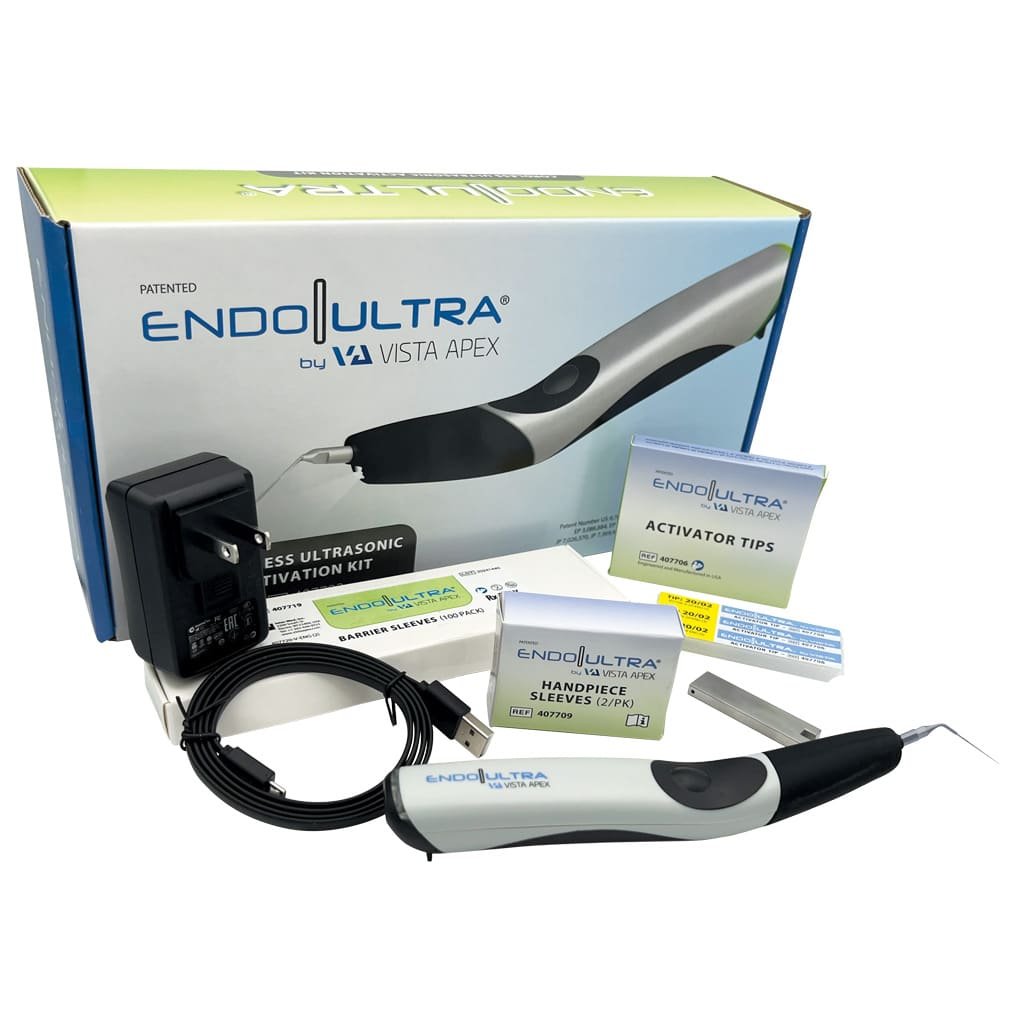

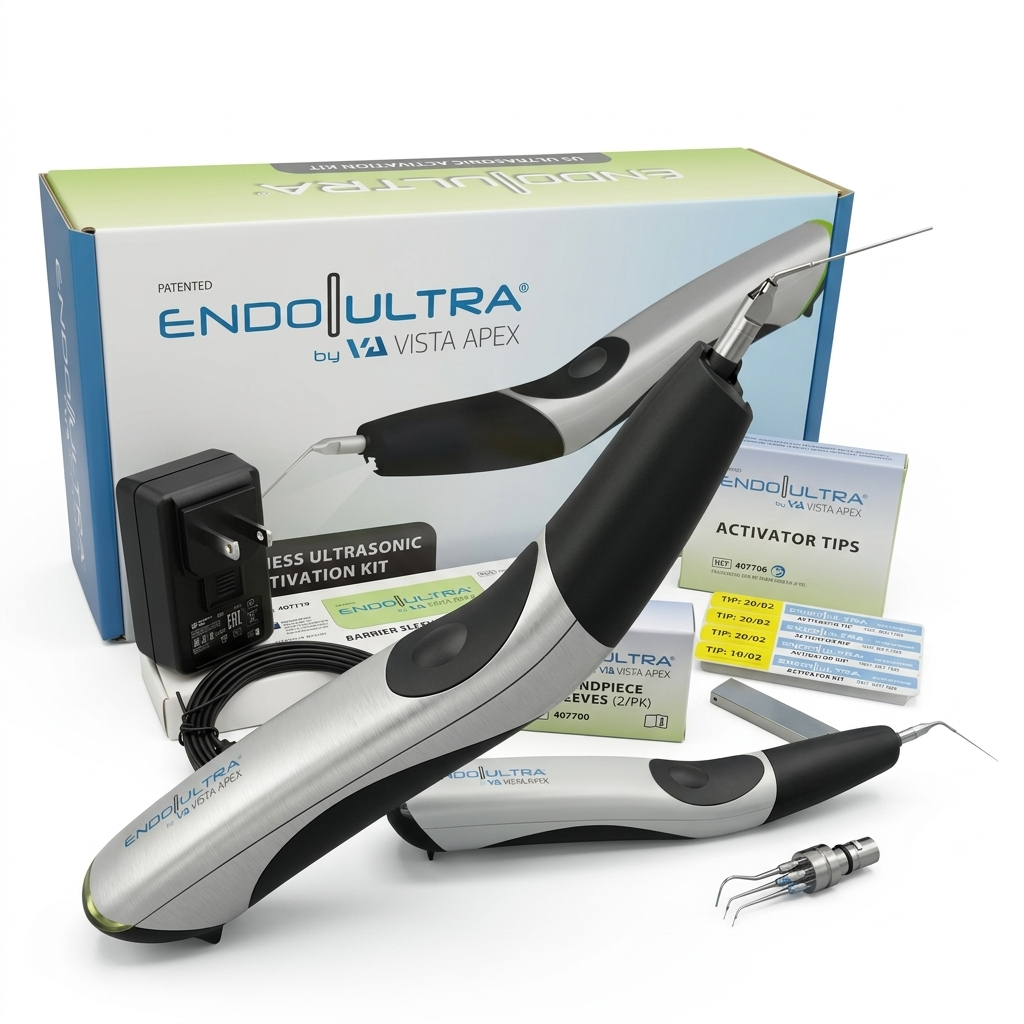

• (1) Cordless Handpiece

• (3) Titanium Activator Tips (20/02)

• (3) Autoclavable Handpiece Sleeves

• (100) Disposable Barrier Sleeves

• (1) Tip Wrench (for tightening and bending tips)

• (1) Charger & USB Cable

• (1) Quick Start Guide

• Placement: Slide a disposable barrier sleeve over the handpiece.

• Tip Attachment: Hand-thread a titanium tip onto the handpiece, then use the wrench to tighten it until it no longer spins (do not overtighten).

• Bending (Optional): Use the hole in the wrench to bend the tip to the desired angle (70–90° recommended).

• Irrigation: Fill the root canal with the desired irrigant.

• Activation: Insert the tip to within 2mm of the apex. Press the button and move the tip in short vertical strokes for 30–60 seconds per canal.

• Cleanup: Remove the barrier and autoclavable sleeve. Sterilize the sleeve and tip; the handpiece itself should be wiped with disinfectant.

• Estimated Tip Life: Approximately 20 uses per tip.

• Safety: Contraindicated for patients or users with heart pacemakers.

• Maintenance: The lithium-ion battery is not user-replaceable. If it fails, the unit must be returned to Vista Apex for service.

• Storage: Keep dry and avoid extreme temperatures.

• Duration: 1 Year Limited Warranty from the date of purchase.

• Coverage: Covers manufacturing defects in the handpiece and charger.

• Exclusions: Warranty is voided if third-party accessories (tips/chargers) are used or if the device is tampered with by unauthorized personnel.
