• Wide Bandwidth: Allows for better penetration in difficult-to-image patients while maintaining high resolution for superficial structures.

• Multi-Application: Capable of performing a wide range of exams without changing probes.

• Ergonomic Design: Features a lightweight handle and a flexible, long-reach cable to reduce operator fatigue.

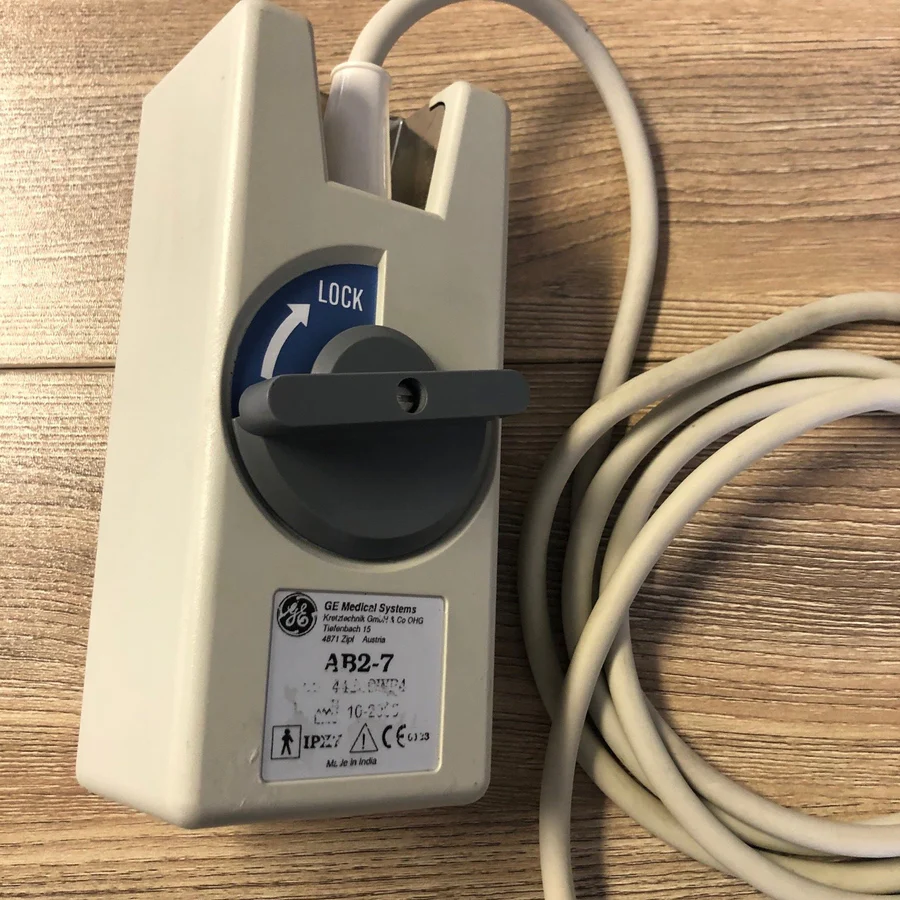

• Locking Mechanism: Robust "Twist-Lock" connector ensures a secure, noise-free connection to the ultrasound console

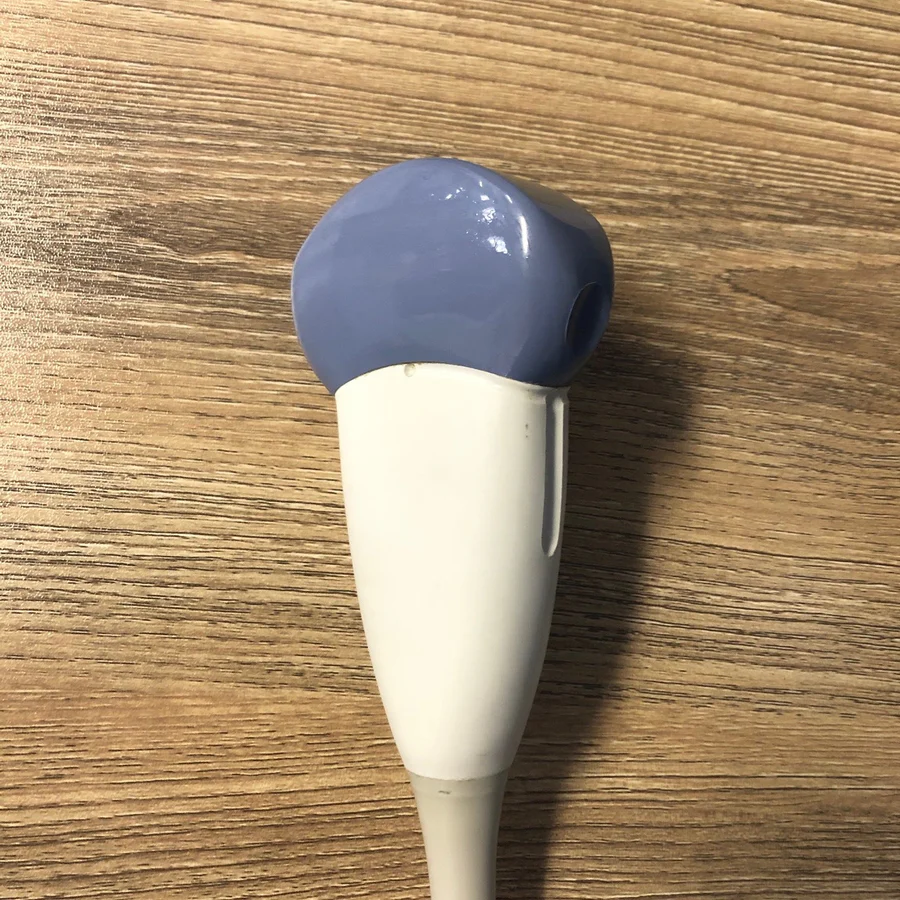

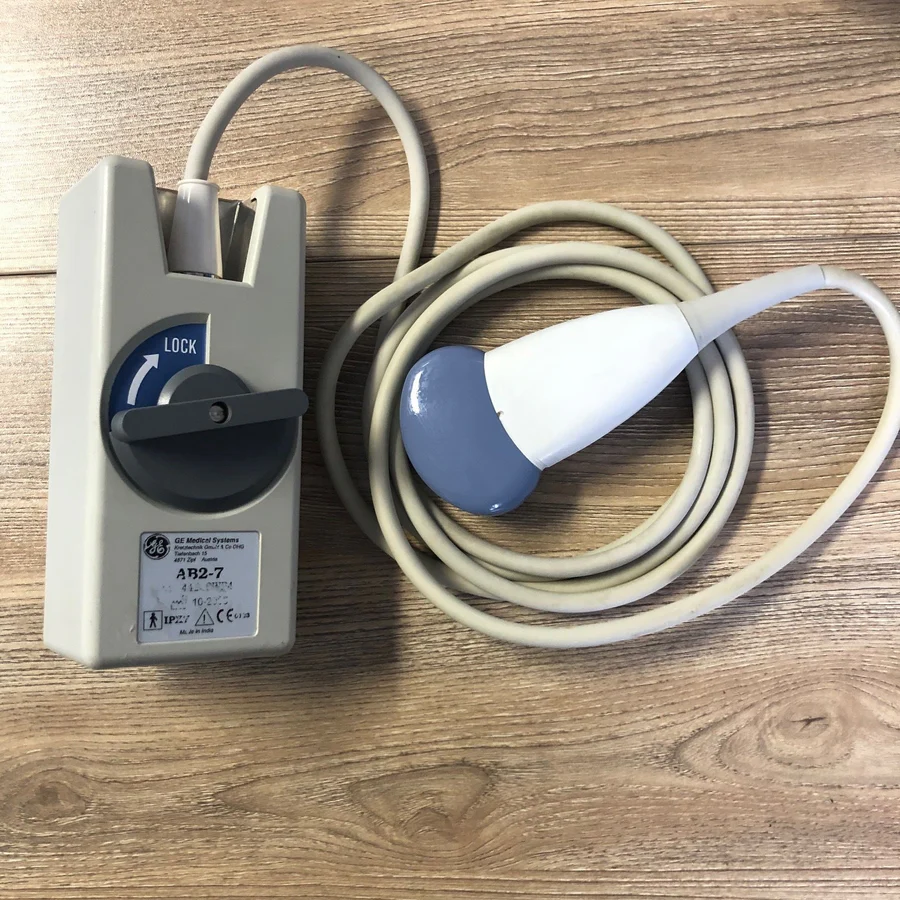

The GE AB2-7 is a multi-frequency convex array transducer designed for high-resolution 2D diagnostic imaging. It is a versatile "workhorse" probe used primarily for deep imaging in adult and pediatric patients. It is known for its ergonomic "swivel" locking connector and durable cable design, providing reliable performance in busy clinical environments like hospitals and diagnostic centers

• Type: Convex / Curved Array

• Frequency Range: 2.0 MHz – 7.0 MHz (Multi-frequency)

• Footprint: 60 x 13 mm (approx.)

• Field of View: 80°

• Elements: 128

• Compatibility: Specifically designed for the GE Voluson 730 series (Expert, Pro, and Pro V).

shipped in a custom-fit anti-static foam box to protect the sensitive acoustic lens and connector pins.

• Abdominal: General imaging of liver, kidneys, and gallbladder.

• Obstetrics (OB): Routine fetal scanning and growth monitoring.

• Gynecology (GYN): Pelvic exams.

• Urology: Bladder and prostate imaging.

• Pediatrics: Abdominal scans for children.

Should only be cleaned with approved non-abrasive wipes (like CaviWipes or Sani-Cloth) to avoid damaging the blue acoustic lens.
