• Ergonomic & Durable Construction: Built with a solid steel frame featuring anticorrosive treatment and coated in high-impact polystyrene for maximum security and longevity. The upholstery is made of high-resistance injected polyurethane, offering seamless, non-toxic, and anti-flame properties.
• Advanced Lifting System: Equipped with an electro-mechanical driven gearmotor for smooth, soft-start movements. This system eliminates the sensation of bumps, ensuring patient comfort and increasing engine life.
• Integrated Electronic System: Operates on a safe, low-voltage (24V) system that allows full interface with reflectors, equipment, and the Salvo electronic water unit. This ensures safety for both patient and professional while maximizing component durability.
• Precision Control: Features a joystick foot control with three work schedules, return-to-zero position, spit position, and chair movement locking. The PAD control panel allows easy management of chair positioning, reflector performance, and water flow.
• Hygiene & Maintenance: The Easy-Fix System allows for the practical removal of the backrest for quick cleaning and disinfection. The water unit includes a debris filter and a proximity sensor that automatically triggers water flow, enhancing hygiene and saving water.
• Complete Clinical Setup: Comes standard with a pneumatic lock arm, 1 triple syringe, 2 terminals for high rotation, 1 terminal for pneumatic micromotor, and 2 large instrument trays. The articulable arm offers freedom of movement with pneumatic locking.
• Optional Upgrades: Available with leather upholstery in 5 colors, water heating for the triple syringe, and advanced lighting options like the Sirius Sensor 3 LEDs or Sirius Sensor 3×2 LEDs (Yellow Light Technology) to inhibit early polymerization of composites.

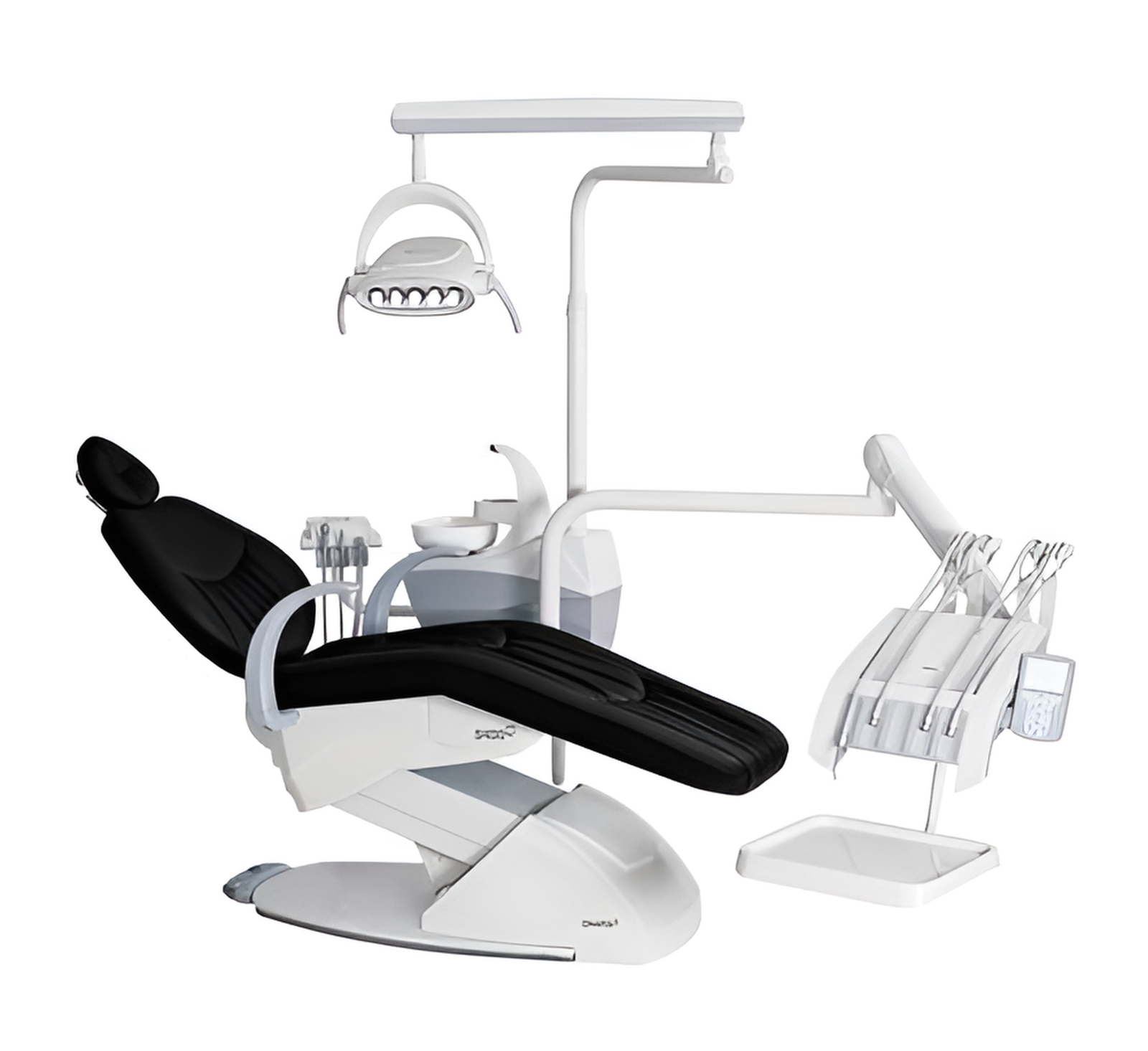

The GNATUS S 400 H Dental Chair is a high-precision, electro-mechanical dental unit designed for comprehensive dental care operations, including curing and composite material delivery. Engineered with a solid steel structure and advanced pneumatic tools, this dental chair serves as the primary mechanical power source for various dental instruments, offering unmatched ergonomics and durability for clinics in Bangladesh.

• Power Supply: 127/220 V ~ (Selectable internally)
• Frequency: 50/60 Hz
• Power Input: 200VA
• Protection Class: Class I equipment – Type B applied part
• Water Protection: IPX 0 (Chair), IPX 1 (Footswitch)
• Lifting Capacity: Distributed load of 200 kg (Patient mass + accessories)
• Net Weight: 120 Kg
• Material: High-impact polyethylene body, solid steel structure with anticorrosive treatment
• Tray Capacity: Maximum load of 2kg per tray
• Dental Light (Optional): Persus LED (Monofocal, 8,000–35,000 Lux), Sirius Sensor 3 LEDs, or Sirius Sensor 3×2 LEDs (Yellow Light Tech)

• The unit is typically disassembled into several major components: the main chair base, the delivery unit arm, the overhead lamp assembly, and the side water unit.

• Each component is secured in industrial-grade packaging to protect the mechanical linkages and the external finish during transit.

• Installation: Utilize the "Easy Fix" system for assembly; however, professional connection to water, air, and electrical lines is highly recommended.

• Patient Positioning: Use the biarticulated headrest to secure the patient’s head at the desired angle for specific dental quadrants.

• Maintenance: Regularly wipe down the high-quality upholstery with dental-grade disinfectants. Ensure the internal storage box is organized to prevent clutter during surgery.
