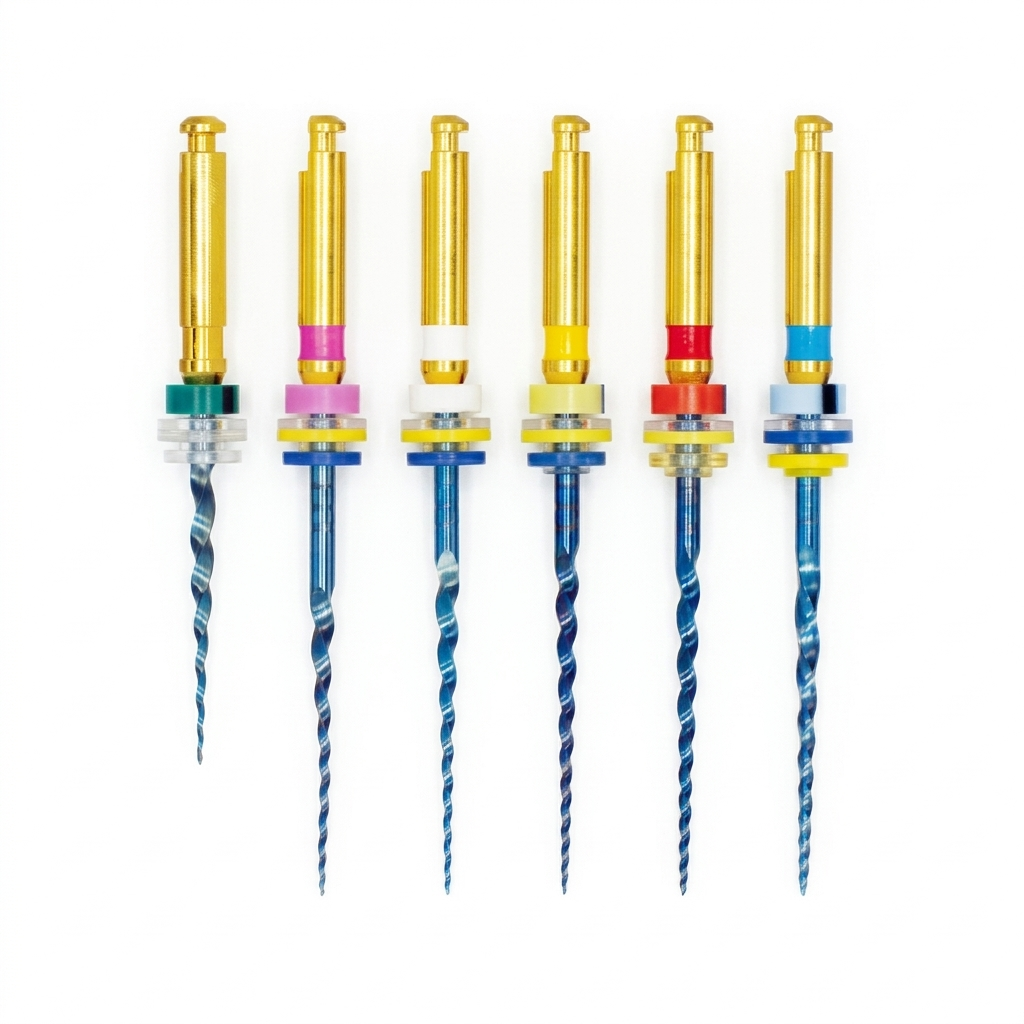

The image shows a set of Blue Heat-Activated NiTi Rotary Endodontic Files. These are a modern generation of root canal instruments that use advanced metallurgy to appear blue, signifying a specific thermal treatment that enhances flexibility and safety.

Blue Heat-Activated Rotary Files are precision endodontic instruments made from a specially treated Nickel-Titanium alloy. The "Blue" treatment alters the molecular structure of the NiTi, placing the metal in a "Martensitic" phase at body temperature. This allows the file to be incredibly flexible, pre-bendable, and highly resistant to cyclic fatigue, making it ideal for navigating severely curved root canals.

• Controlled Memory (CM): The files do not have the "spring-back" effect of traditional NiTi; they can be pre-bent to enter difficult canal orifices and will stay bent until heated (e.g., during autoclaving).

• Superior Flexibility: The blue oxide layer allows the file to follow the natural canal anatomy closely, significantly reducing the risk of ledging, zipping, or transportation.

• Enhanced Fatigue Resistance: Offers up to 300–800% more resistance to cyclic fatigue (breaking due to stress in curves) compared to standard NiTi files.

• Safety Tip: Features a non-cutting, rounded "safety tip" to guide the instrument through the canal without perforating the apex.

• Efficient Debris Removal: Usually designed with a convex triangular or S-shaped cross-section to maximize cutting space and debris evacuation.

• Material: MaxTech/Nitinol Blue Heat-Treated NiTi Alloy.

• Taper/Sizes: Available in assorted or single sizes (e.g., SX, S1, S2, F1, F2, F3).

• Lengths: 21mm, 25mm, and 31mm.

• Rotational Speed: Recommended 250–350 RPM.

• Torque: Recommended 1.5–3.0 N·cm (depending on the specific file in the sequence).

• Motion: Continuous clockwise rotation (standard) or reciprocating (model dependent).

• Scouting: Always start by negotiating the canal with a #10 or #15 hand K-file to establish a glide path.

• Lubrication: Use an EDTA-based lubricant (like Glyde) copiously throughout the procedure.

• Instrumentation: Use a gentle "picking" or "brushing" motion. Do not stay at the working length for more than 1–2 seconds.

• Cleaning: Withdraw the file after every 3–4 strokes to clean the flutes of debris and inspect for unwinding.

• Irrigation: Irrigate frequently with Sodium Hypochlorite (NaOCl) between each file change.

• Assorted Pack: 6 files per blister (SX, S1, S2, F1, F2, F3).

• Single Pack: 6 files of a specific size and length.

• Sterilization: Usually provided non-sterile; must be autoclaved before the first use.

• Sterilization Standards: Autoclavable at 134°C for 3–5 minutes.

• Visual Safety Check: If the file becomes permanently deformed or "unwinds" during use, it must be discarded immediately.

• Warranty: As these are consumable medical instruments, manufacturers typically do not provide a long-term warranty. They are guaranteed against manufacturing defects upon arrival. Professional clinical discretion is required as the lifespan of the file depends on the complexity of the canal.
