• Efficient Reaming Motion: The triangular cross-section is specifically designed for a clockwise cutting motion, which removes large amounts of dentin efficiently.

• Large Diameter Range: Covers sizes #45 to #80, making it essential for completing the preparation of wider canal systems.

• Hard-Fiber 18-8 Stainless Steel: MANI’s signature material provides excellent fracture resistance and maintains a sharp edge even in tough canal walls.

• Non-Cutting Safety Tip: Helps the instrument follow the natural canal curvature, minimizing the risk of transportation or perforation.

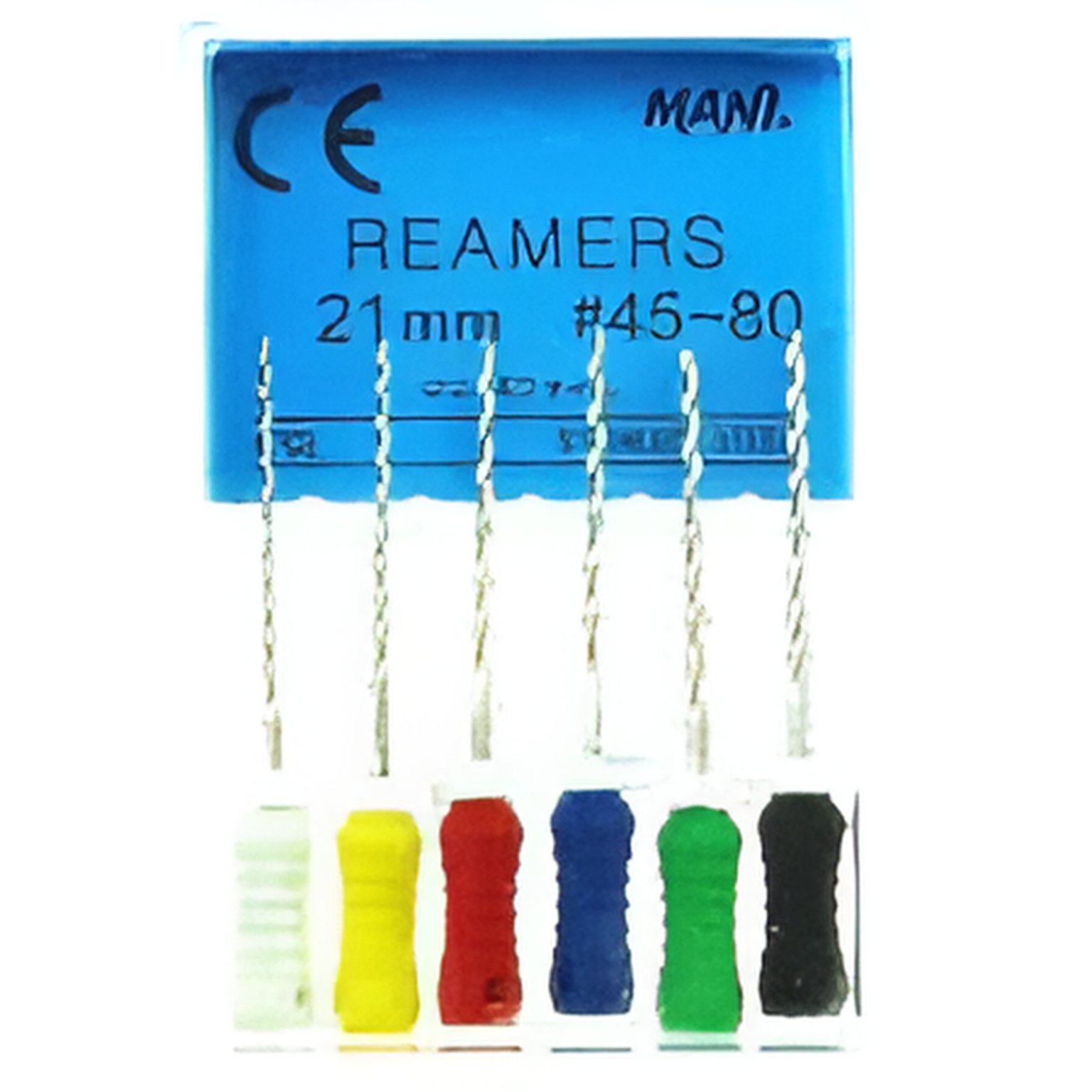

The MANI® Reamer (#45–80) is a heavy-duty endodontic hand instrument designed for the secondary enlargement of root canals. After the initial glide path is established with smaller files, these larger reamers are used to shape the middle and apical thirds of wide or mature canals. The 21 mm length is ideal for molars, offering superior access in the posterior region where vertical space is limited.

Material-18-8 Stainless Steel (Hard-Fiber)

Cross-Section-Triangular (Twisted)

Sizes Included-#45, #50, #55, #60, #70, #80 (Assorted)

Working Length-21 mm

Taper-.02 (2%)

Sterilization-Autoclavable up to 134°C (273°F)

Origin-Made in Japan

• Quantity: 6 pieces per cassette.

• Casing: Transparent polycarbonate sliding cassette for easy organization.

• Identification: ISO color-coded handles for quick size selection (#45-White, #50-Yellow, #55-Red, #60-Blue, #70-Green, #80-Black).

• Usage: Best used after the canal has been pre-widened with smaller instruments (up to #40).

• Motion: Advance the reamer using a continuous clockwise rotation (reaming) to shave the canal walls.

• Irrigation: Always work in a wet canal with an irrigant like Sodium Hypochlorite to keep the large flutes from clogging with debris.

• Cleaning: Must be thoroughly cleaned and autoclaved before the first clinical use.

For professional dental use only. Inspect flutes for stretching or rust before every insertion.
