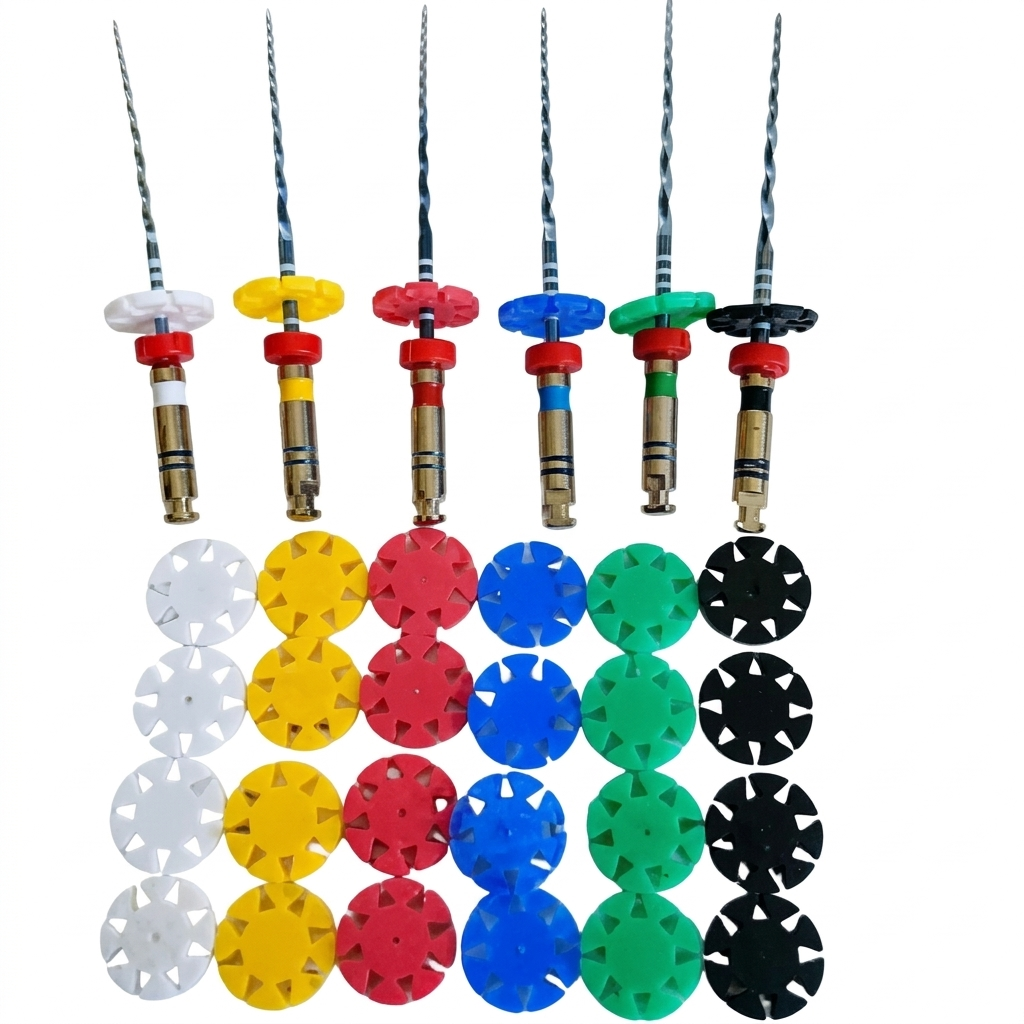

This image shows a Dental Rotary Endodontic File, specifically a Heat-Activated Niti (Nickel-Titanium) file used for root canal shaping. These files are typically part of a "Protaper" or "Universal" style system, designed for efficiency and safety in navigating curved canals.

These rotary files are precision instruments designed for the cleaning and shaping of the root canal system. Manufactured from high-quality Nickel-Titanium with advanced heat treatment (Gold/Blue technology), they offer superior flexibility and resistance to cyclic fatigue compared to traditional stainless steel files.

• Heat-Activated Technology: Enhances flexibility, allowing the file to follow the natural anatomy of the canal without "zipping" or ledging.

• Non-Cutting Safety Tip: Reduces the risk of apical transportation or perforation.

• High Cyclic Fatigue Resistance: Minimizes the chance of instrument separation (breaking) inside the canal.

• Variable Taper Design: Improves debris removal and allows for more efficient shaping.

• Convex Triangular Cross-section: Provides high cutting efficiency while maintaining instrument strength.

• Material: Niti (Nickel-Titanium) Alloy.

• Length Options: Typically available in 21mm, 25mm, and 31mm.

• Color Coding: ISO standard colors (White, Yellow, Red, Blue, Green, Black) corresponding to tip size/taper.

• Rotational Speed: Generally recommended between 250–350 RPM.

• Torque: Varies by file size (typically 1.5–3.0 N·cm).

• Access: Create a straight-line access to the canal orifices.

• Glide Path: Establish a glide path using manual K-files (typically #10 or #15).

• Irrigation: Always use a lubricant (EDTA) and frequent irrigation (Sodium Hypochlorite) during the procedure.

• Motion: Use a gentle "in-and-out" picking motion. Do not force the file apically.

• Cleaning: Clean the flutes of the file frequently and inspect for signs of wear or unwinding.

• Standard Pack: Often sold in blisters of 6 files.

• Assorted Pack: Contains one of each size (SX, S1, S2, F1, F2, F3) for a complete sequence.

• Single Size Pack: Contains 6 files of the same size.

• Sterilization: These are typically provided non-sterile and must be autoclaved (134°C for 3–5 minutes) before use.

• Single-Use Recommendation: While many systems are autoclavable, many clinicians treat them as single-patient use to prevent cross-contamination and material fatigue.

• Warranty: Most dental manufacturers do not offer a traditional "warranty" once the sterile seal is broken, but they do guarantee against manufacturing defects upon arrival.
