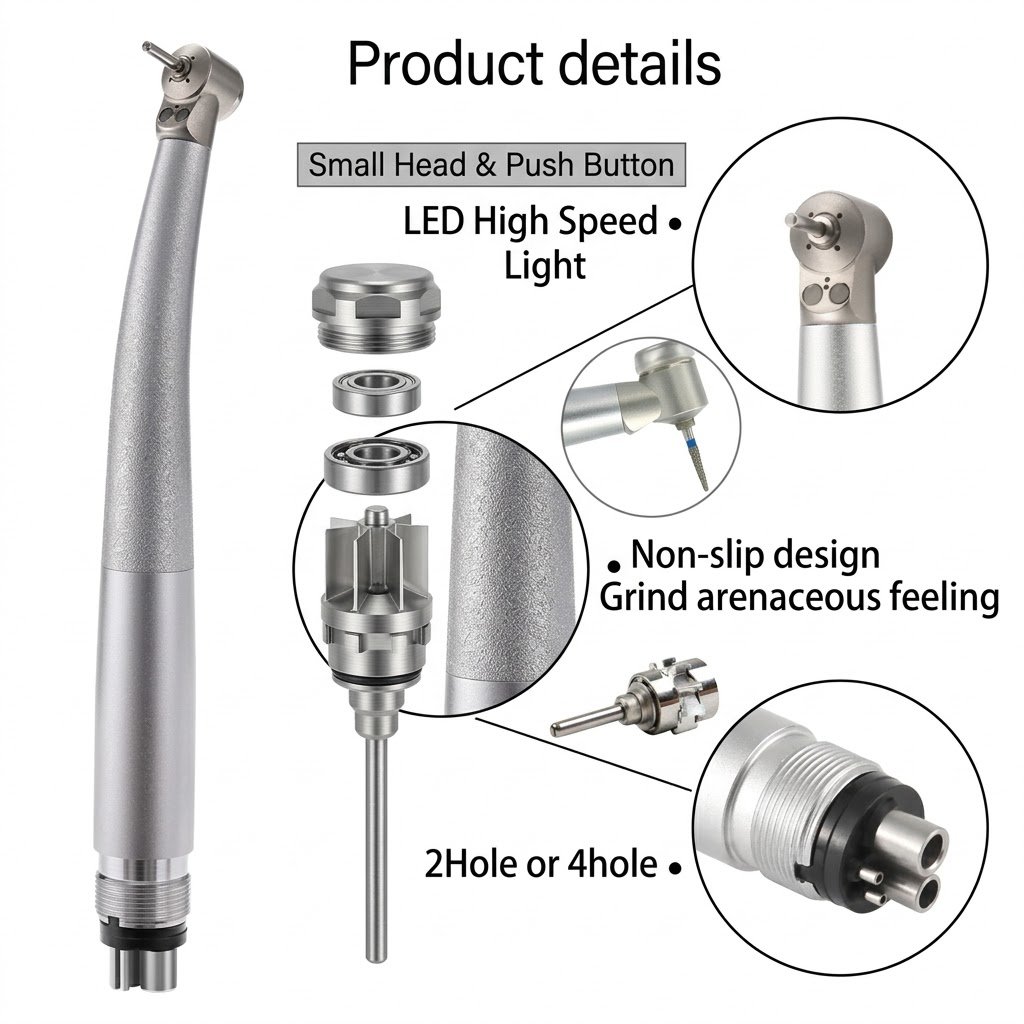

• Mini Head Design: Leaves much more flexible and bigger operational space in the oral cavity.

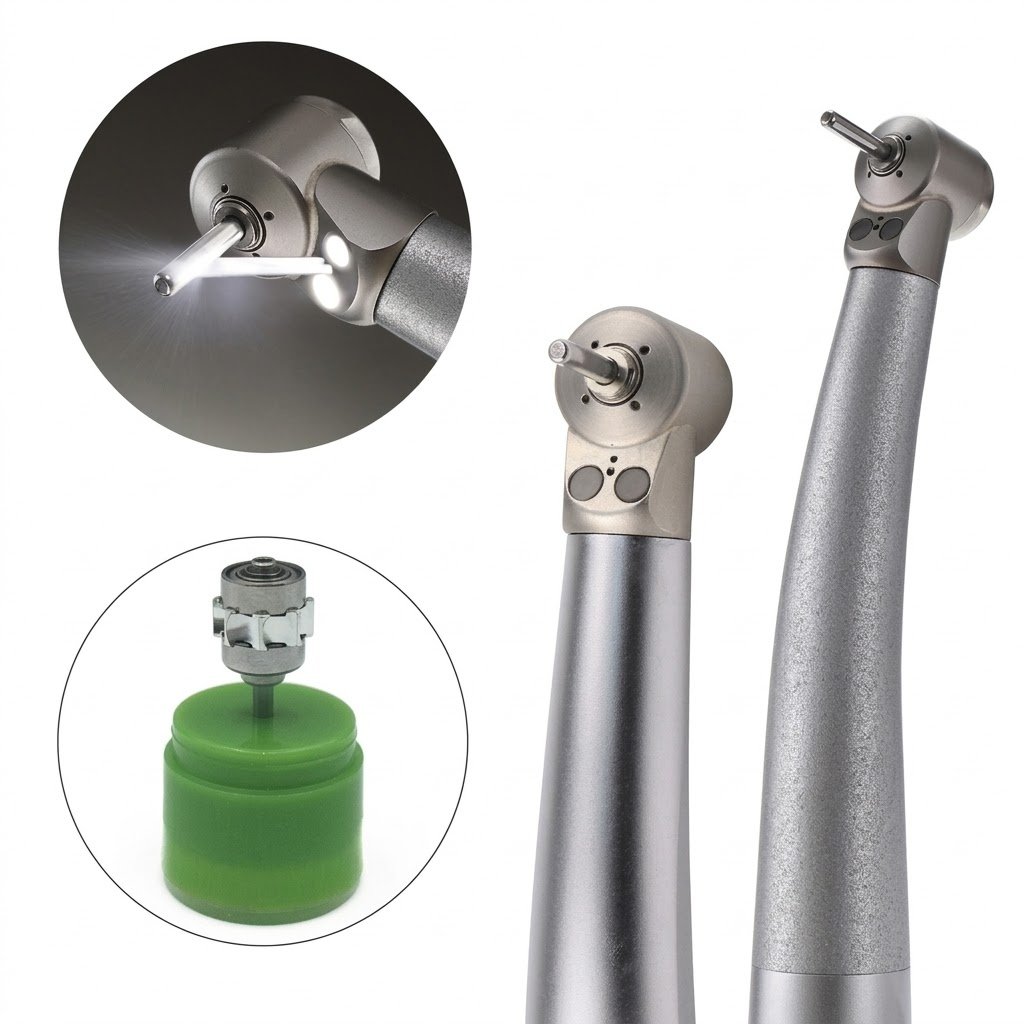

• Self-Luminous LED: Double light E-generator that provides bright illumination automatically during use.

• Advanced Bearing: Uses imported ceramic bearings for longer life, quieter operation, and less vibration.

• Cooling System: Single water spray with a four-point anti-retraction system to prevent cross-contamination and keep the bur cool.

• Durability: High-density cartridge with high cutting efficiency.

• Ergonomics: Moderate angle for easy operation and comfort during long procedures.

The Mini Head Dyna LED Handpiece is a high-speed dental drill designed for precision and visibility. It features a compact "mini head" which provides enhanced maneuverability and a clearer view of the treatment area, especially in the posterior (back) regions of the oral cavity or when working with pediatric patients. It is equipped with an integrated LED generator that illuminates the workspace without the need for external fiber optic systems.

• Air Pressure: 0.20–0.28 Mpa

• Rotation Speed: ≥ 300,000 rpm

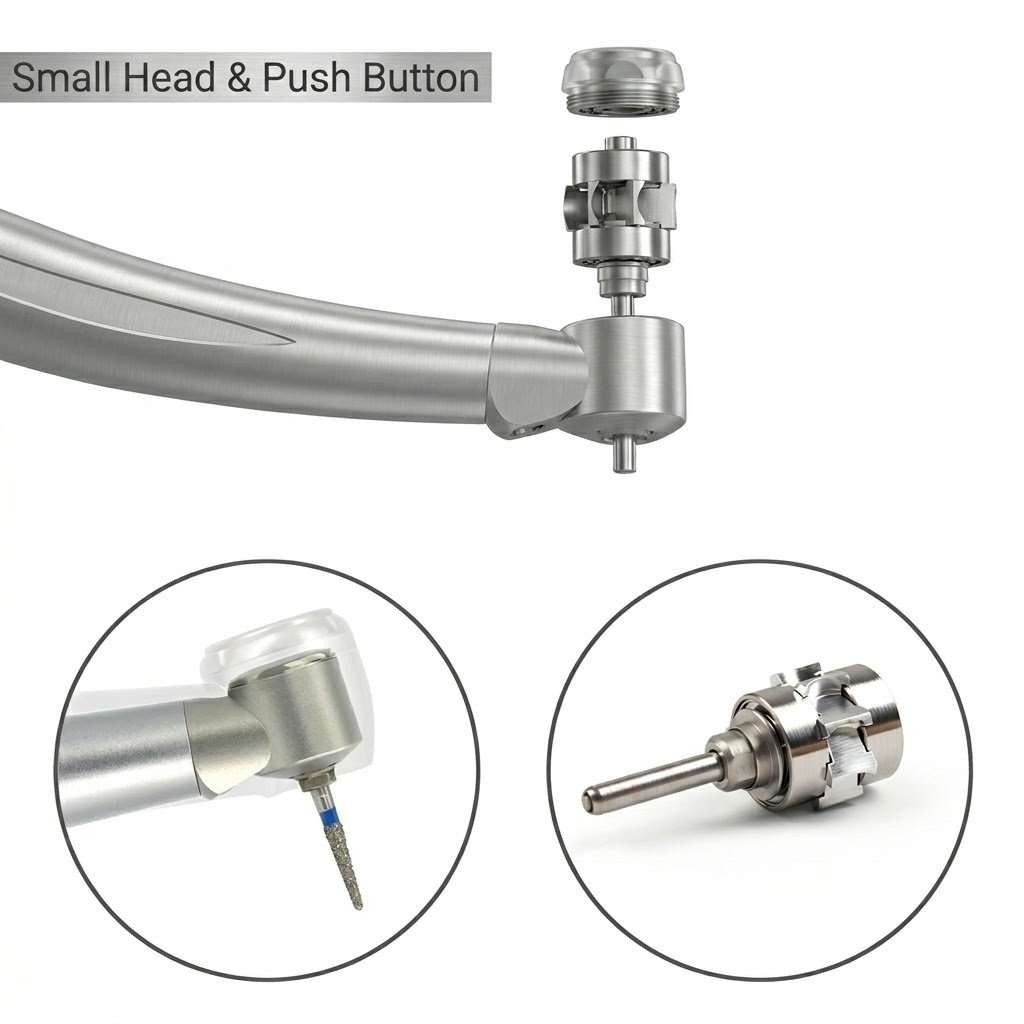

• Chuck Type: Push Button (Bur tool)

• Bur Diameter: 1.59–1.60 mm

• Noise Level: ≤ 80 dB

• Head Dimensions: Approximately 8.6mm (width) x 10mm (height)

• Bearing Type: Imported Ceramic Bearings

1 x Mini Head Dyna LED Handpiece (2-hole connection).

• Installation: Connect the handpiece to a standard 2-hole dental tubing (as indicated by the package options).

• Bur Insertion: Use the push-button mechanism to insert a standard friction grip (FG) bur. Ensure it is locked before use.

• Operation: Maintain air pressure within the recommended range (0.20–0.28 Mpa) to prevent damage to the turbine.

• Maintenance: Lubricate the handpiece after every use or before sterilization using high-quality dental oil.
