• High-Frequency Vibration: Provides a frequency range of 15,000 to 17,000 Hz for effective calculus removal.

• Comfortable Handling: Lightweight and ergonomically balanced to reduce hand fatigue.

• Fully Autoclavable: Ensures high hygiene standards with heat sterilization at 135°C.

• Universal Fitting: Designed to fit standard 2-hole dental unit connections.

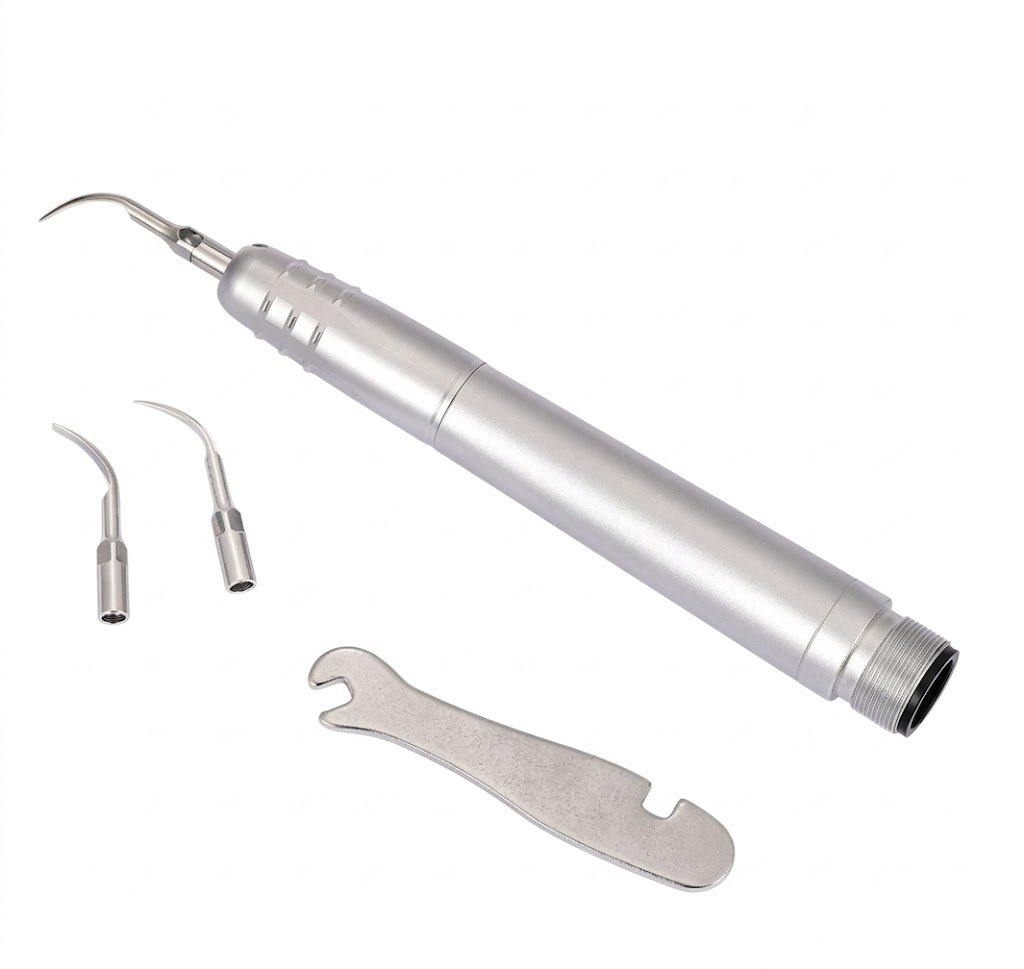

The Ultrasonic Air Scaler is an NSK-style pneumatic scaler designed for efficient dental prophylaxis and scaling. It operates using compressed air to create high-frequency vibrations that effectively remove tartar and plaque. It is highly durable and compatible with common UDS-type scaler tips, making it a versatile addition to any dental practice.

• Model: NSK style AS2000-B2 / AS2000-M4

• Connection: 2-hole (standard)

• Available Air Pressure: 2.0 – 3.2 kgf/cm²

• Working Frequency: 15,000 Hz – 17,000 Hz

• Tip Compatibility: UDS type scaler tips

• Sterilization: Autoclavable up to 135°C

• Weight: approx. 170g (with box approx. 180g)

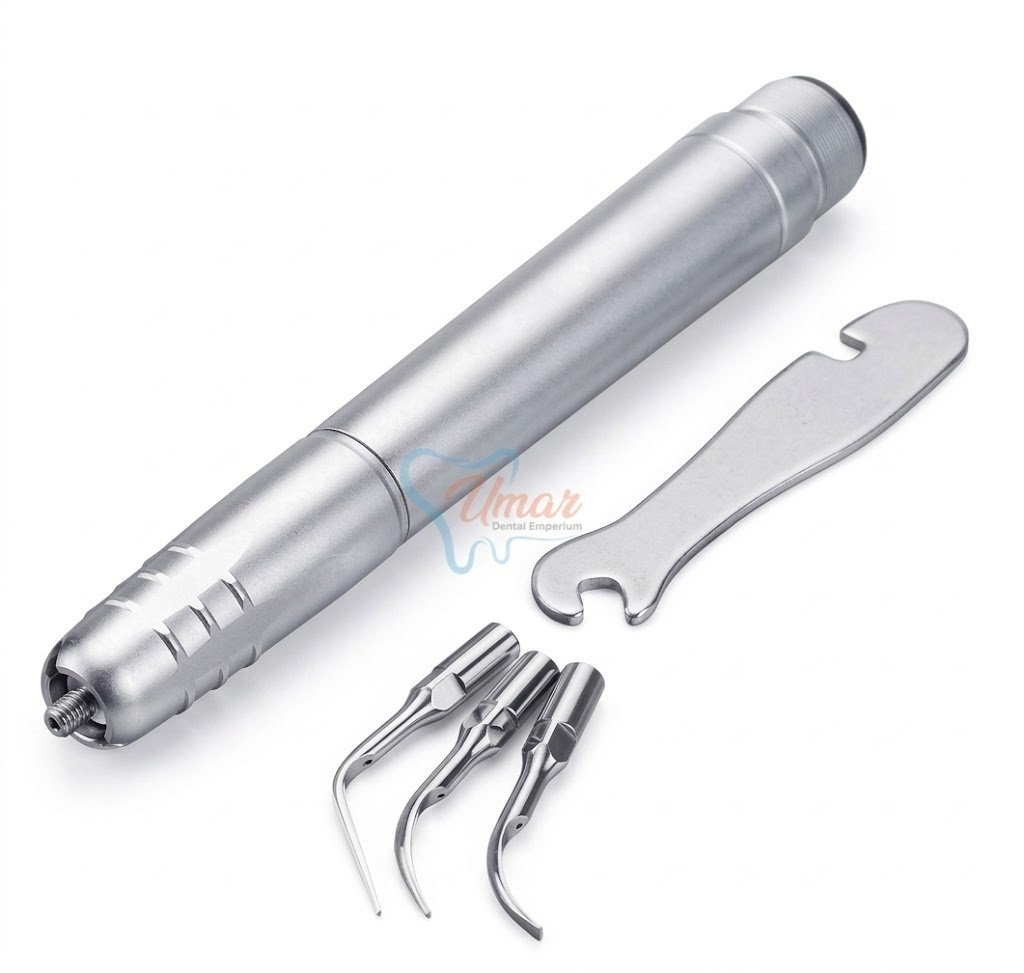

• 1 x Air Scaler (2-hole)

• 3 x Scaling Tips (G1, G2, G3)

• 1 x Spanner (for tip installation/removal)

1. Connection: Securely attach the air scaler to the 2-hole dental unit tubing.

2. Tip Installation: Use the provided spanner to screw the scaling tip (G1, G2, or G3) onto the scaler head. Ensure it is tightened firmly.

3. Pressure Adjustment: Ensure your dental unit's air pressure is set between 2.0 and 3.2 kgf/cm².

4. Scaling: Use a light touch with the side of the tip against the tooth surface while maintaining water spray for cooling.

5. Sterilization: Remove the tip after use and autoclave both the scaler and tips according to protocol.
