• High-Frequency Activation: Operates at 5,000–6,000 Hz for powerful yet gentle irrigation.

• Vector Super Sonic Technology: Engineered for maximum efficiency in removing biofilm and smear layers.

• Standard Compatibility: Designed to connect directly to any existing Midwest 2-HOLE dental chair tubing.

• Integrated Spray System: Ensures a consistent flow of coolant and irrigant during the activation process.

• Durable Construction: Built with high-quality medical-grade materials for long-term clinical reliability.

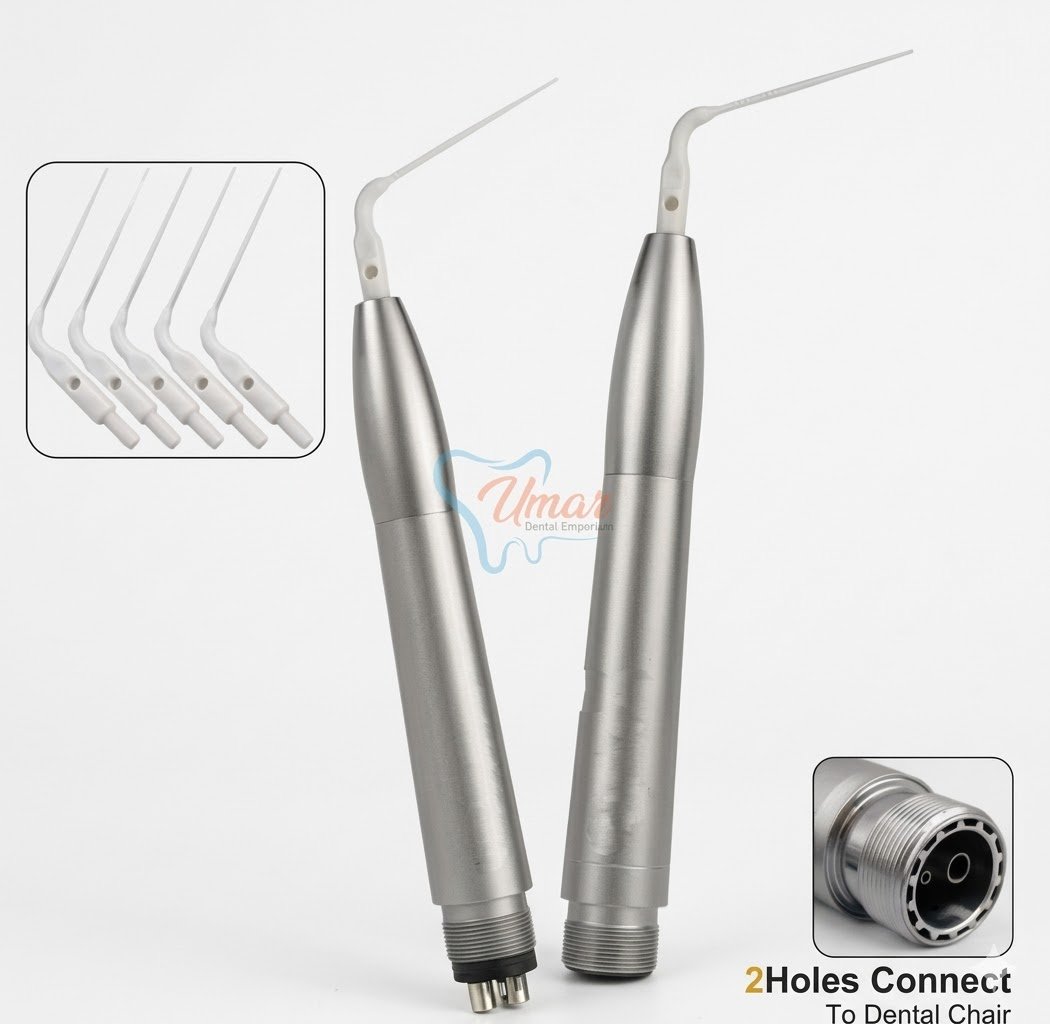

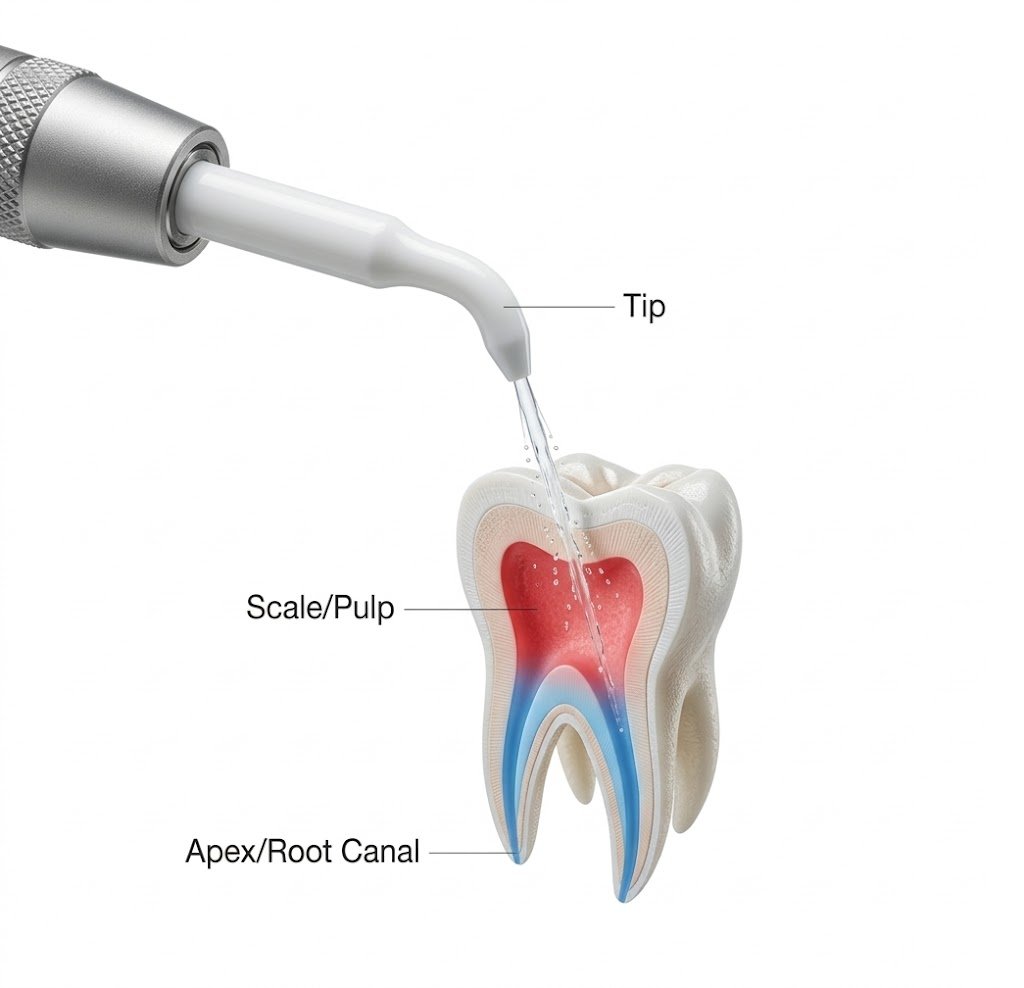

The Sonic Air Handpiece Irrigation Activation system is a high-performance endodontic tool designed to enhance the cleaning and disinfection of root canal systems. Unlike manual rinsing, this device utilizes high-frequency sonic oscillations (up to 6,000 Hz) to create acoustic streaming and cavitation. This ensures that irrigants reach the most complex areas of the canal, including lateral canals and isthmuses, providing a superior level of debridement.

• 1 x Air Handpiece (2-hole connection)

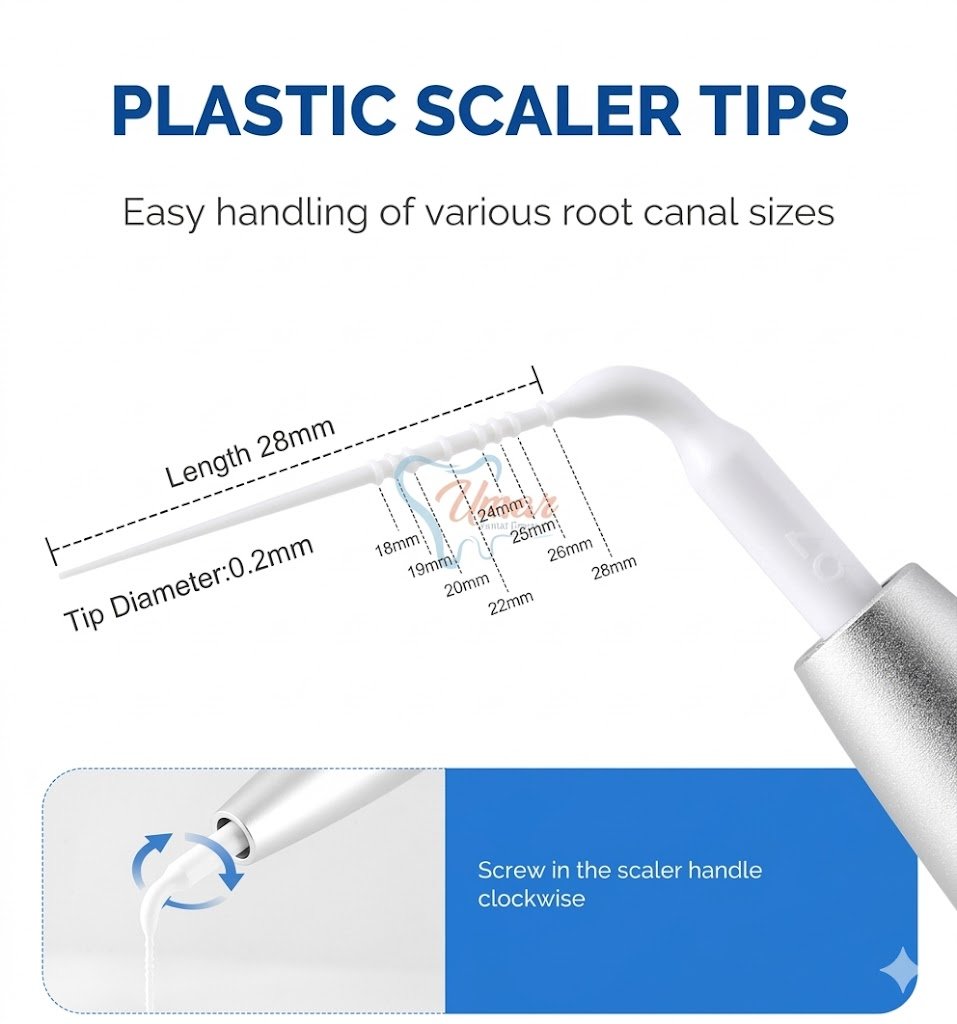

• 5 x Specialized Endodontics Tips (Various sizes)

• 1 x Torque Wrench (For tip installation)

• 1 x User Manual

1. Connection: Attach the handpiece to your dental unit's 2-hole tubing and ensure a secure fit.

2. Tip Selection: Select the appropriate endodontic tip from the provided set and tighten it using the Torque Wrench.

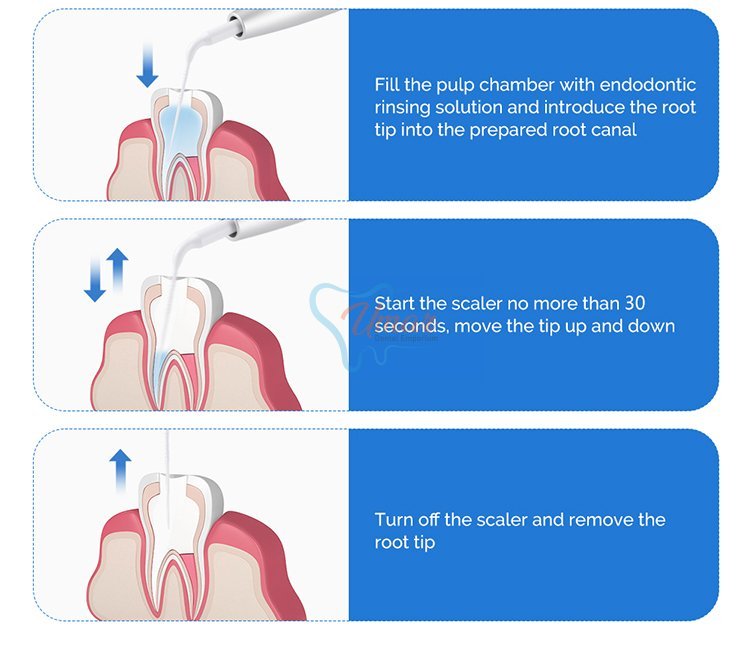

3. Irrigant Placement: Fill the pulp chamber or canal with your chosen irrigant (e.g., NaOCl).

4. Activation: Place the tip into the canal (short of the apex) and activate the foot pedal for 30–60 seconds per canal.

5. Movement: Use a gentle up-and-down motion to ensure the irrigant circulates throughout the entire canal length.

• Sterilization: The handpiece and tips are fully autoclavable at 135°C (275°F).

• Safety Tip: Always use the torque wrench to tighten tips; hand-tightening may lead to vibration loss or the tip becoming loose during a procedure.

• Application: Specifically recommended for endodontic irrigation, removal of smear layers, and deep cleaning of the root canal system.

• 6-Month Limited Warranty: Covers manufacturing defects and internal mechanical failure under normal clinical use.

• Note: Physical damage to the head or clogs due to poor air filtration are generally not covered.
